12V Lithium Starter Battery – 600CCA PowerStart® PS16000

Rated 5.00 out of 5 based on 4 customer ratings
(3 customer reviews)

429.00  incl VAT

12V Starter battery Lithium 600CCA
PowerStart® PS16000
Battery capacity 16Ah

In stock

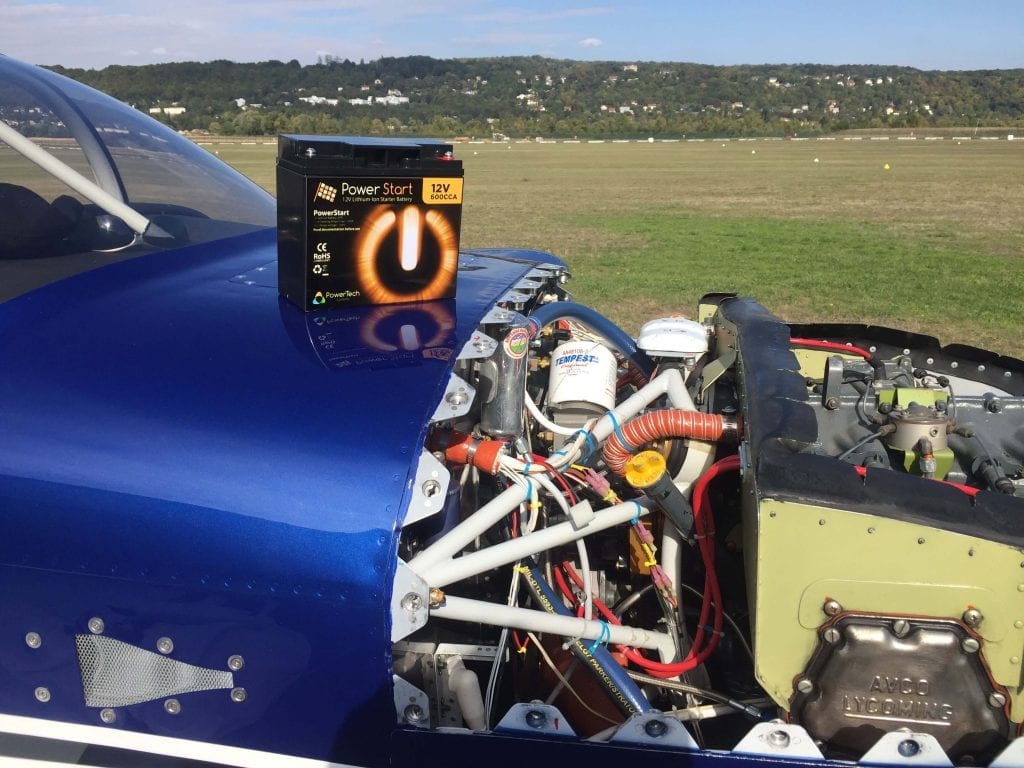

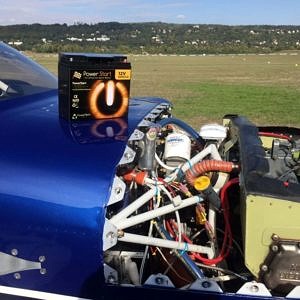

RV7-A engine start – Lycoming IO360 – 5900 cm3 – 360 cubic inches – 200HP

Key Points

    • 12V starter battery – Lithium Iron Phosphate (LFP) cells – 16000mAh
    • 16000mAh real capacity (not “Lead acid equivalent capacity”)
    • Maximum engine size : 6500 cm3 / 400 cubic inches
    • Designed for Van’s aircraft RV7/RV8 family airplanes
    • CCA (Cold Cranking Amp) : 600A
    • Maximum continuous discharge current : 300A
    • Maximum pulse current (5s) : 600A
    • Dimensions : 181mm x 77mm x 167mm
    • Weight : 2310g
    • High lifespan: thousands of cycles (see chart)

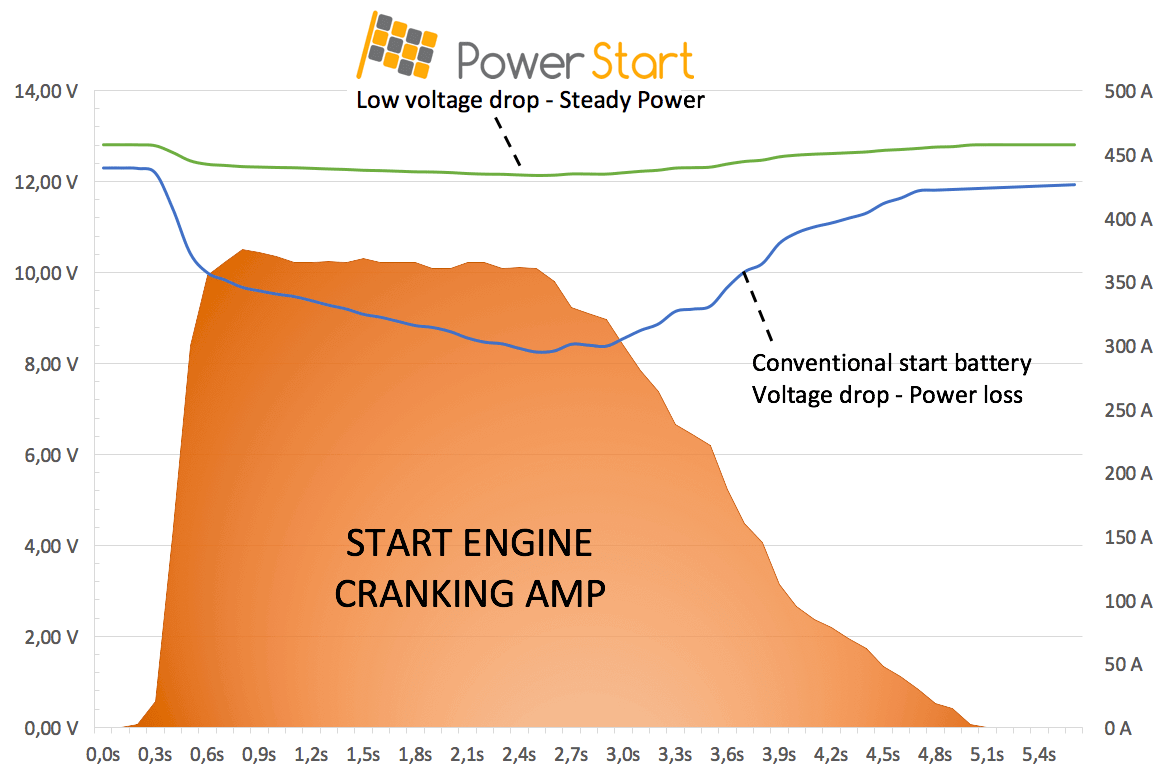

    • Very low voltage drop
  • Ultra safe Lithium Iron Phosphate chemistry (no thermal run-away, no fire or explosion risks)
  • Up to 80 % lighter and 70% smaller than conventional Lead-acid battery.
  • Maximum safety with advanced Built-in Battery Management System
  • Monitoring of cell and PCB temperature, current, voltage, SOC
  • No Lead, no heavy metal, no toxic element.
  • Calendar life > 10 years.
  • Robust design enclosed in a sealed and waterproof case (IP56)
  • Operating temperature in charge : 0°C à +60°C
  • Operating temperature in discharge: -15°C à +60°C
  • 100% Maintenance free
  • 2 years commercial warranty

Guarantee

Description

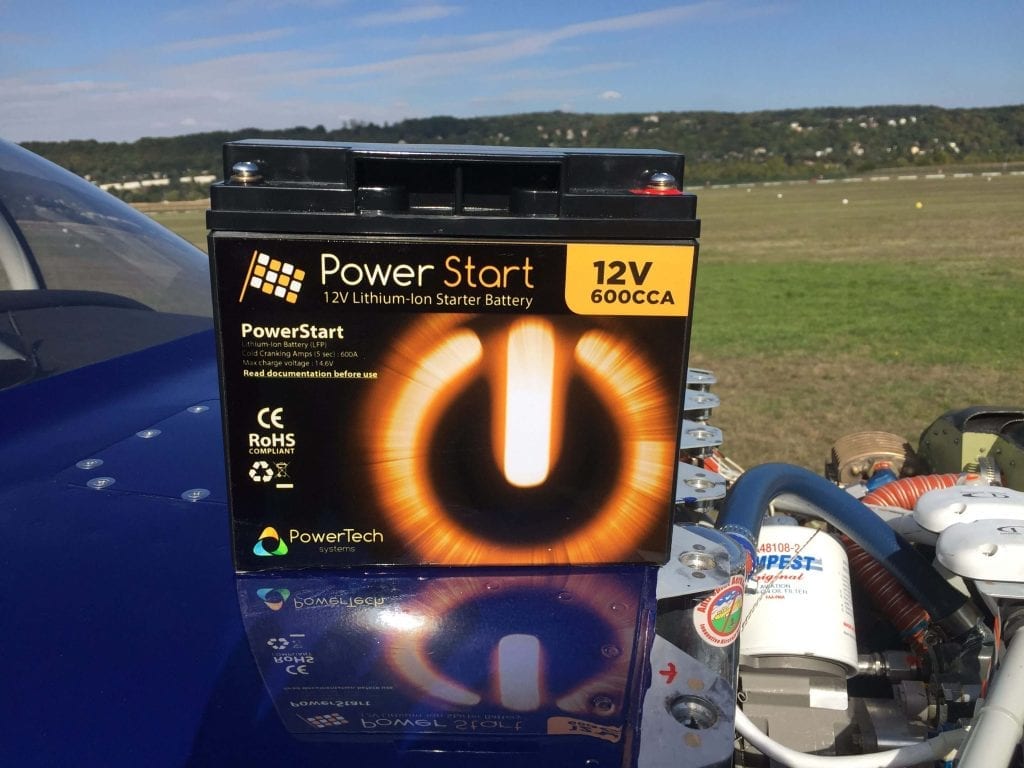

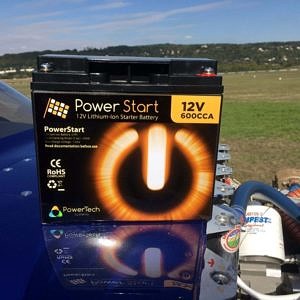

12V Starter Battery – 600CCA PowerStart® PS16000

The 600CCA PowerStart® PS16000 Lithium 12V starter battery is a very lightweight and compact product. It uses high-performance cells with Lithium Iron Phosphate Life (LiFePO4) delivering extreme powers. This battery delivers very strong currents to easily start internal combustion engines.

Direct replacement of the lead-acid battery

The 600CCA PowerStart® PS16000 Lithium 12V starter battery has been designed to replace Lead Starter batteries. It is used for competition vehicles and applications requiring very high currents. Unlike lead-acid batteries, the voltage of the PowerStart® battery drops slightly during start-up. This delivers constant power to the starter motor.
The PS16000 600CCA battery has a large storage capacity of 16Ah unlike the lithium starter batteries on the market. Because of the high starting energy requirement, the more energy you will have in the battery, the less deeply you will discharge the cells. This will ensure that your PS16000 (600CCA) starter battery will last a long time.

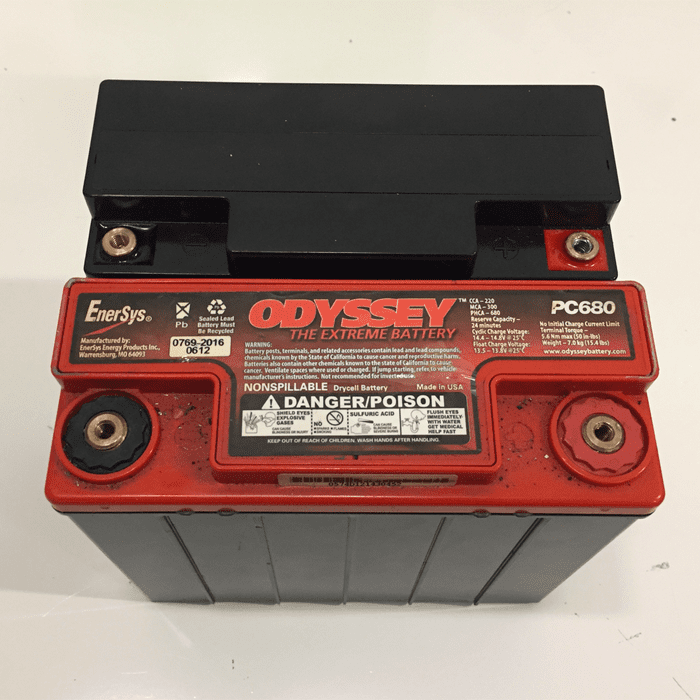

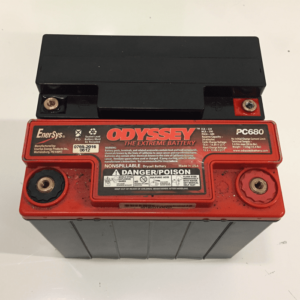

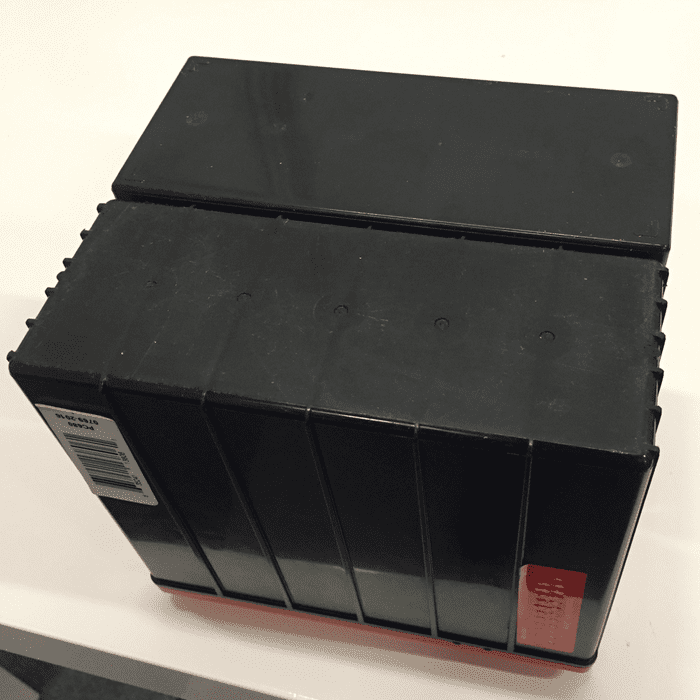

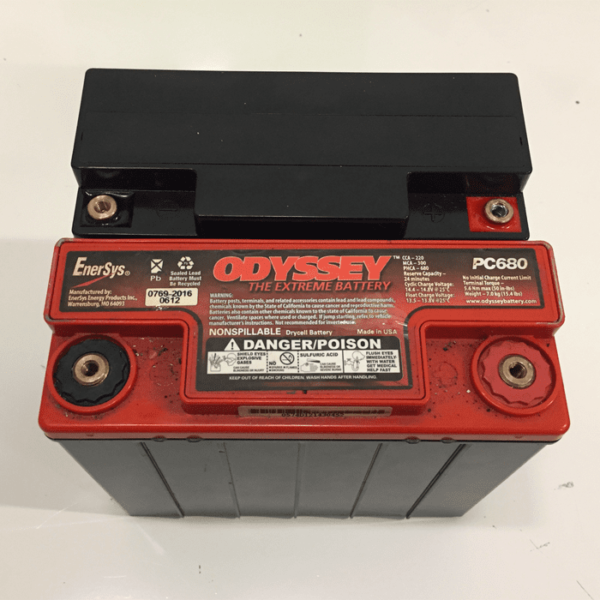

  • Direct drop-in battery for Odyssey PC680 Extreme
  • 16Ah real capacity (not “Lead acid equivalent capacity”)
  • Built-In BMS
  • Only 2.31Kg for 181mm x 77mm x 167mm
  • M6 Terminal

Security

The battery incorporates an innovative control system (BMS Battery Management System) to ensure a very high level of safety during use. The Battery Management Systems (BMS) constantly monitors and balances the cells of the Lithium 12V 600CCA PS16000 Lithium Starter Battery. This is ideal to protect the battery and preserve its lifespan.

The 600CCA PowerStart® PS16000 Lithium 12V starter battery is protected by a waterproof ABS case. It is designed to be water and dust resistant (IP56 protection class).

Lithium 600CCA 12V starter battery more environmentally friendly

PowerStart® products are lightweight, high-performance and more environmentally friendly than lead acid batteries. These batteries directly replace older generation batteries which are not very efficient and harmful to the environment. In particular, they are harmful due to the use of heavy metals and the difficulty of recycling them (VRLA Lead batteries, AGM, etc.).

PowerStart product is covered by a 2 years commercial warranty.
Garantee

Technical Charts

Frequently Asked Questions

Does my PowerStart battery will fit with my vehicle alternator ?

Alternator are usually regulated and provide a voltage between 14.2V and 14.8v when operating.
PowerStart battery has a built-in BMS that is able to limit charge current when voltage is greater than 14.4V : unlike conventional Lithium starter batteries, the BMS does not immediately cut-off charge as soon battery is reaching maximum voltage, but it will decrease incoming current using a PWM (Pulse Width Modulation) device until battery is totally charged and balanced.

This innovative BMS system allow full protection and charge, even if alternator is not properly regulated or if it delivers a voltage greater than battery max charge voltage.

How safe are Lithium-Ion PowerStart batteries ?

PowerStart batteries are using Lithium Iron Phosphate chemistry (LFP) that is one of the most safe Lithium-Ion technology. This chemistry is not subject to thermal-runaway, is non-flammable and is considered as non-hazardous by international regulation standards.

Each battery is fitted with a high quality Battery Management System (BMS) that ensure a safeguard role during battery operation. The BMS is designed to deliver high power in complete safety for a very large spectrum of applications,

What can i use PowerStart battery for ?

PowerStart batteries are designed to start Internal Combustion Engines or to run application that needs high level of Power for a short time.

PowerStart are commonly used for Motorbikes, scooters, Quads, Jet-ski, snowmobile, but also for microlight, LSA and private aircraft starter batteries.

After removing your old batteries, place PowerStart battery in the same way. You may use the same cables to reconnect PowerStart battery.

How long does a PowerStart battery last ?

PowerStart advanced lithium-ion technology will provide you with thousands of engine start cycles as soon the battery is properly operated and engine to start in working properly.

What is the Battery Management System (BMS) and how does it work ?

Each PowerStart embeds a built-in BMS. This BMS is a high-tech design that manage two main aspects of battery during operation :

Protection features :

  • Low Voltage Protection
  • Over Voltage Protection
  • Short Circuit Protection Switch
  • Reverse Polarity Protection Switch
  • Over temperature – Automatically shut-down battery until normal temperature recovery

Balancing features :

  • Internal cell balancing – Automatically balances PowerStart cells during battery operation. Balancing algorithm has been developed to ensure perfect balance between cells throughout battery life.
PowerStart Product line Specification

PowerStart Product line Specification

3 reviews for 12V Lithium Starter Battery – 600CCA PowerStart® PS16000

    Show reviews in all languages (7)

  1. Rated 5 out of 5

    Steeve

    Hello, i got an RV8 with the same engine IO360. Can you ship it to US ?

    • Rated 5 out of 5

      MyLithiumBattery

      Dear Steeve,
      At this time, we sell our products within EEC only. Main reason is regarding shipping cost that are very high for US for Lithium-Ion devices.

  2. Rated 5 out of 5

    James

    Great product for LSA and Rotax engines.

  3. Rated 5 out of 5

    Tonio

    The best battery I found for my Rotax 912s that has a LAD injection system.
    Engine start well, capacity grant autonomy
    Advice. Buying it, consider to, replacing Rotax/Ducati regulator by higher quality regulator
